T-M-4C

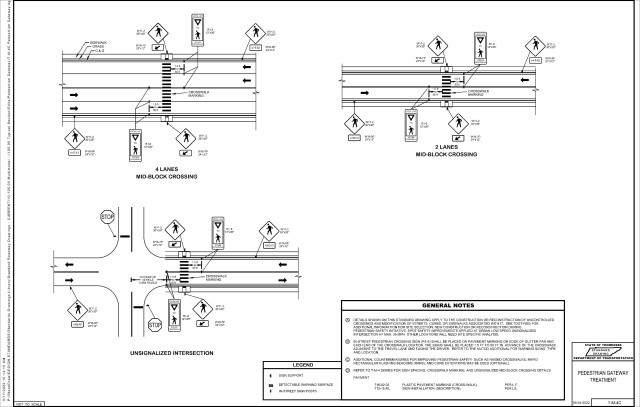

PEDESTRIAN GATEWAY TREATMENT
(Click image to open PDF)
Latest Revision Note
XX/XX/20XX NEW STANDARD DRAWINGS
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-M-4 | STANDARD INTERSECTION PAVEMENT MARKINGS | FOR SIGN SPACING, CROSSWALK MARKING, AND UNSIGNALIZED MID-BLOCK CROSSING DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 713-15.40 | LS | SIGN INSTALLATION (DESCRIPTION) |
| 716-02.03 | L.F. | PLASTIC PAVEMENT MARKING (CROSS-WALK) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 05-01-2022 |
