T-M-18

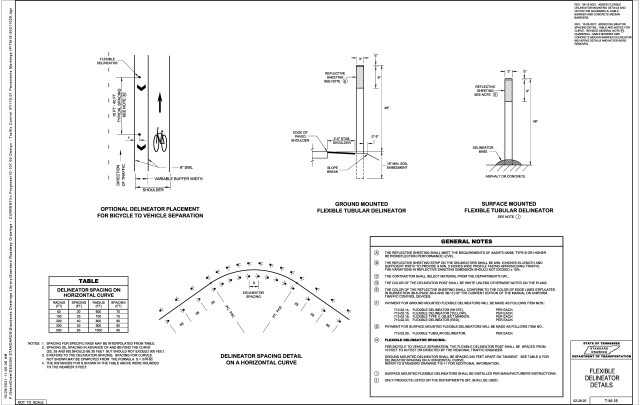

FLEXIBLE DELINEATOR DETAILS
(Click image to open PDF)
Latest Revision Note
10/29/2021 ADDED DELINEATOR SPACING DETAIL, TABLE AND NOTES FOR CURVE. REVISED GENERAL NOTE H. GUARDRAIL, CABLE BARRIER AND CONCRETE MEDIAN BARRIER DELINEATOR MOUNTING DETAILS AND NOTES WERE REMOVED.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-S-11 | DELINEATOR AND MILEPOST DETAILS | FOR MORE INFORMATION |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | |
|---|---|---|---|
| 713-02.14 | EACH | FLEXIBLE DELINEATOR (WHITE) | |
| 713-02.15 | EACH | FLEXIBLE DELINEATOR (YELLOW) | |
| 713-02.16 | EACH | FLEXIBLE TYPE II OBJECT MARKER | |
| 713-02.30 | EACH | FLEXIBLE TUBULAR DELINEATOR | |
| 713-02.33 | EACH | FLEXIBLE DELINEATOR (RED) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 02-28-2020 | 06-15-2021 | 10-29-2021 |
