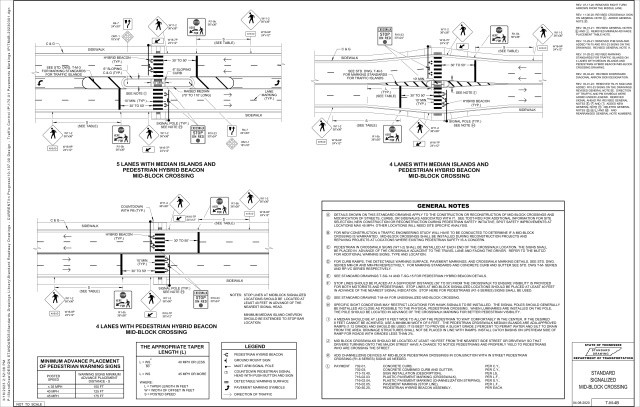

T-M-4B
STANDARD SIGNALIZED MID-BLOCK CROSSING
(Click image to open PDF)
Latest Revision Note
03/01/2023 REMOVED TN-70 SIGN AND ADDED R10-23 SIGNS ON THE DRAWINGS. REVISED GENERAL NOTE (K). DIRECTION OF TRAFFIC AND PM SYMBOLS WERE ADDED UNDER LEGEND. REMOVED SIGNAL AHEAD PM. REVISED GENERAL NOTES (E), (F) AND (I). ADDED NEW GENERAL NOTE (H). DELETED GENERAL NOTES (G), (H), (L) AND (M). AND REARRANGED GENERAL NOTE NUMBERS.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| MM-CR-SERIES | MULTIMODAL : CURB RAMPS | FOR CURB RAMPS, THE DETECTABLE WARNING SURFACE, PAVEMENT MARKING, AND CROSSWALK MARKING DETAILS |
| MM-PM-SERIES | MULTIMODAL : PAVEMENT MARKING | FOR CURB RAMPS, THE DETECTABLE WARNING SURFACE, PAVEMENT MARKING, AND CROSSWALK MARKING DETAILS |
| RP-VC-SERIES | ROADWAY, PAVEMENT APPURTENANCES, AND FENCES : CURBS | FOR MARKING STANDARDS AND CONCRETE CURB AND GUTTER |
| T-M-3 | MARKING STANDARDS FOR TRAFFIC ISLANDS, PAVED SHOULDERS AND MEDIANS FOR CONVENTIONAL ROADS | FOR MARKING STANDARDS FOR TRAFFIC ISLANDS |
| T-M-4A | STANDARD UNSIGNALIZED MID-BLOCK CROSSING | FOR UNSIGNALIZED MID-BLOCK CROSSING |
| T-M-SERIES | DESIGN - TRAFFIC CONTROL : PAVEMENT MARKINGS | FOR MARKING STANDARDS AND CONCRETE CURB AND GUTTER |
| T-SG-14 | PEDESTRIAN HYBRID BEACON DETAIL, 2 OR 3 LANE FACILITIES | FOR PEDESTRIAN HYBRID BEACON DETAILS |
| T-SG-15 | PEDESTRIAN HYBRID BEACON DETAIL, MULTILANE FACILITIES | FOR PEDESTRIAN HYBRID BEACON DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 702-01 | C.Y. | CONCRETE CURB |
| 702-03 | C.Y. | CONCRETE COMBINED CURB & GUTTER |
| 713-15.40 | LS | SIGN INSTALLATION (DESCRIPTION) |
| 716-02.03 | L.F. | PLASTIC PAVEMENT MARKING (CROSS-WALK) |
| 716-02.04 | S.Y. | PLASTIC PAVEMENT MARKING(CHANNELIZATION STRIPING) |
| 716-02.05 | L.F. | PLASTIC PAVEMENT MARKING (STOP LINE) |
| 730-50.25 | EACH | PEDESTRIAN HYBRID BEACON ASSEMBLY |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 04-08-2020 | 07-17-2020 | 11-30-2020 | 06-15-2021 | 10-29-2021 | 01-28-2022 | 05-04-2022 | 03-01-2023 |
