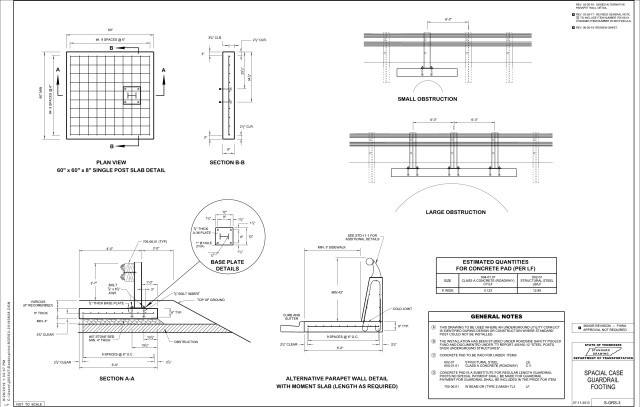

S-GRS-3
SPECIAL CASE GUARDRAIL FOOTING
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| STD-11-1 | BRIDGE RAILING CONCRETE PARAPET WITH STRUCTURAL TUBING 1988 | FOR ADDITIONAL DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 602-01 | LB. | STRUCTURAL STEEL | |
| 604-01.01 | C.Y. | CLASS A CONCRETE (ROADWAY) | |
| 705-06.01 | LF | W BEAM GR (TYPE 2) MASH TL3 |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 07-11-2013 | 02-05-2016 | 03-28-2017 | 06-28-2019 |
