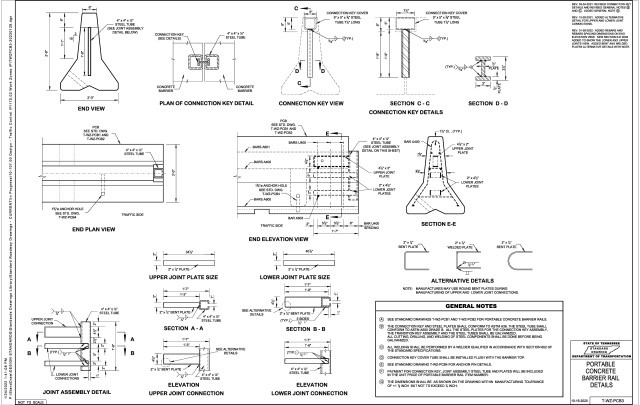

T-WZ-PCB3
PORTABLE CONCRETE BARRIER RAIL DETAILS
(Click image to open PDF)
Latest Revision Note
01/28/2022 ADDED REBARS AND REBARS SPACING DIMENSIONS ON END ELEVATION VIEW. NEW SECTION E-E WAS ADDED TO SHOW THE LOWER AND UPPER JOINTS VIEW. ADDED BENT AND WELDED PLATES ALTERNATIVE DETAILS WITH NOTE.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-WZ-PBR1 | 10 FOOT PORTABLE CONCRETE BARRIER RAIL | FOR DETAILS |
| T-WZ-PBR2 | DETAILS FOR WORK ZONE CHANNELIZATION DEVICES | FOR DETAILS |
| T-WZ-PBR4 | PORTABLE CONCRETE BARRIER RAIL ANCHOR PIN DETAILS | FOR DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 10-16-2020 | 03-04-2021 | 10-29-2021 | 01-28-2022 |
