T-WZ-PCB4

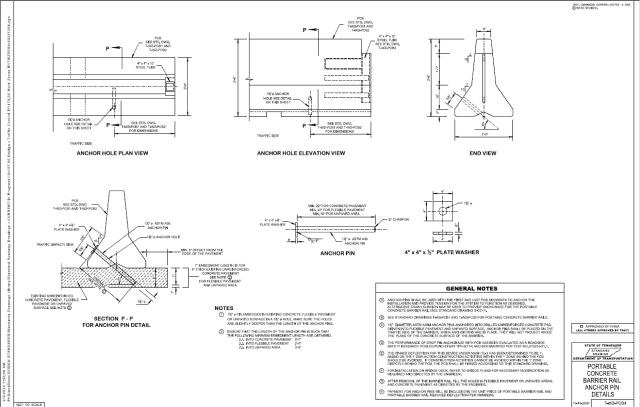

PORTABLE CONCRETE BARRIER RAIL ANCHOR PIN DETAILS
T-WZ-PCB4

(Click image to Open PDF)

Latest Revision Note

12/09/2022    GENERAL NOTES A AND E WERE REMOVED.

Related Standard Drawings

DRAWINGDESCRIPTIONREMARKS
S-CC-1CRASH CUSHIONFOR DETAILS
T-WZ-PCB110 FOOT PORTABLE CONCRETE BARRIER RAILFOR DETAILS
T-WZ-PCB220 PORTABLE CONCRETE BARRIER RAIL
FOR DETAILS
T-WZ-PCB3PORTABLE CONCRETE BARRIER RAIL DETAILSFOR DETAILS

Related Item Numbers

ITEM NO.U/MDESCRIPTIONREMARKS




Archived Standard Drawings

DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD )
10-16-2020| 12-09-2022
