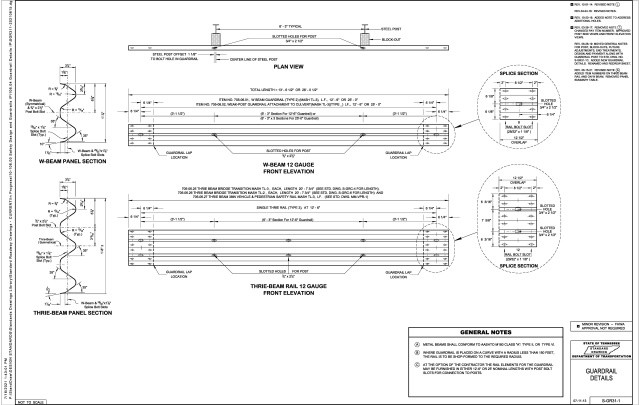

S-GR31-1
GUARDRAIL DETAILS
(Click image to open PDF)
Latest Revision Note
06/15/2021 REVISED NOTE (A). ADDED ITEM NUMBERS ON THRIE BEAM RAIL AND ON W BEAM. REMOVED PANEL SUMMARY TABLE.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| MM-VPR-1 | VEHICLE AND PEDESTRIAN SAFETY RAIL | FOR DETAILS |
| S-GRC-4 | GUARDRAIL CONNECTION TO BRIDGE RAILING CONCRETE PARAPET | FOR LENGTH |
| S-GRC-6 | GUARDRAIL CONNECTION TO BRIDGE ENDS FOR LOW SPEED ROADWAYS | FOR LENGTH |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 705-06.01 | L.F. | W BEAM GR (TYPE 2) MASH TL3 |
| 705-06.02 | L.F. | W BEAM GR (TYPE 2) MASH TL-3 (LONG POST) |
| 705-06.25 | EACH | THRIE BEAM BRIDGE TRANSITION MASH TL-3 |
| 705-06.26 | EACH | THRIE BEAM BRIDGE TRANSITION MASH TL-2 |
| 705-06.27 | L.F. | THRIE BEAM 38IN VEHICLE & PEDESTRIAN SAFETY RAIL MASH TL-3 |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 07-11-2013 | 12-01-2014 | 04-04-2016 | 10-20-2016 | 03-28-2017 | 06-28-2019 | 06-15-2021 |
