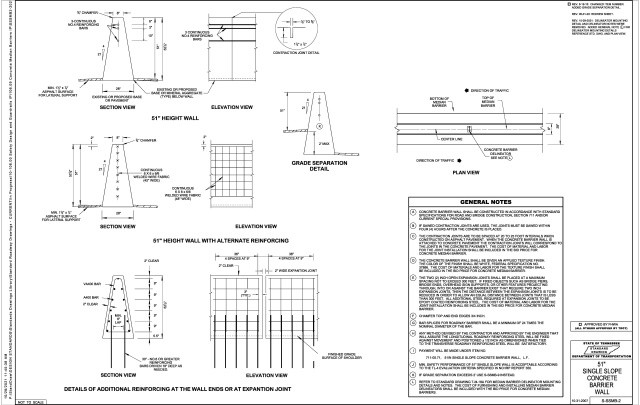

S-SSMB-2
51” SINGLE SLOPE CONCRETE BARRIER WALL
(Click image to open PDF)
Latest Revision Note
10/29/2021 DELINEATOR MOUNTING DETAIL AND DELINEATOR NOTES WERE REMOVED. ADDED GENERAL NOTE (L) FOR DELINEATOR MOUNTING DETAILS REFERENCE STD. DWG. AND PLAN VIEW.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-SSMB-9 | SINGLE SLOPE BARRIER WALL FOR GRADE SEPARATED MEDIAN | IF GRADE SEPARATION EXCEEDS 2’ USE S-SSMB-9 INSTEAD |
| T-M-18A | DELINEATOR MOUNTING DETAILS | FOR MEDIAN BARRIER DELINEATOR MOUNTING DETAILS AND NOTES |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 711-05.71 | LF | 51IN SINGLE SLOPE CONCRETE BARRIER WALL | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 10-31-2007 | 08-19-2013 | 05-01-2020 | 10-29-2021 |
