T-L-2

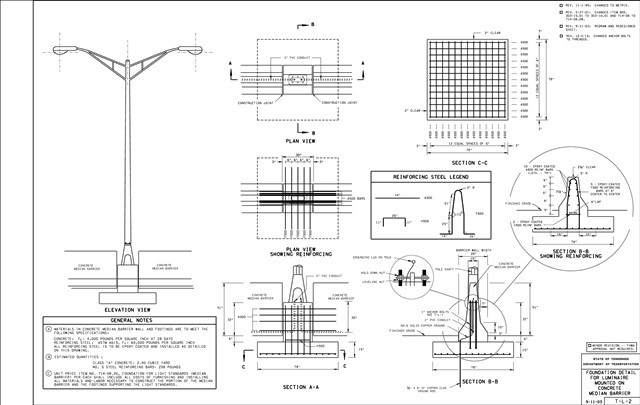

FOUNDATION DETAIL FOR LUMINAIRE MOUNTED ON CONCRETE MEDIAN BARRIER
(Click image to open PDF)
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-L-1 | STANDARD LIGHTING FOUNDATION DETAILS | FOR ANCHOR BOLTS DETAILS |
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 714-08.26 | EACH | FOUNDATION FOR LIGHT STANDARDS (MEDIAN BARRIER) | |
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 11-01-1995 | 05-27-2001 | 09-11-2003 | 12-04-2013 |
If you find any mistakes, missing information or have a question, contact:
Traffic Operations Division
Stephen K. Bryan, P.E., PTOE
1200 James K. Polk Building
Nashville, TN 37243
ph. 615-741-2152
Steve.Bryan@tn.gov
This Page Last Updated: November 12, 2019 at 10:59 AM
