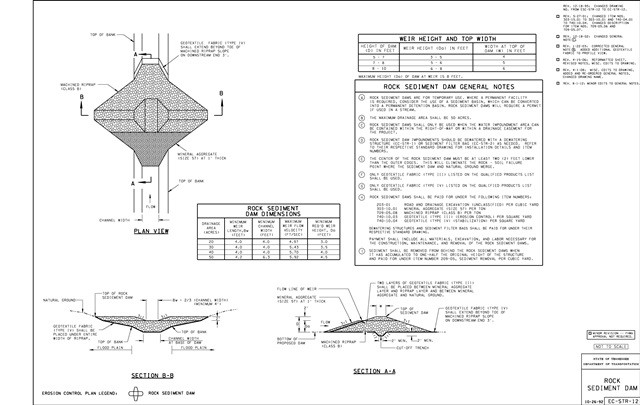

EC-STR-12
ROCK SEDIMENT DAM
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| EC-STR-1 | DEWATERING STRUCTURE | ROCK SEDIMENT DAM IMPOUNDMENTS SHOULD BE DEWATERED WITH A DEWATERING STRUCTURE. REFER TO STANDARD DRAWING FOR INSTALLATION DETAILS AND ITEM NUMBERS. |
| EC-STR-2 | SEDIMENT FILTER BAGS | ROCK SEDIMENT DAM IMPOUNDMENTS SHOULD BE DEWATERED WITH A SEDIMENT FILTER BAG. REFER TO STANDARD DRAWING FOR INSTALLATION DETAILS AND ITEM NUMBERS. |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 203-01 | C.Y. | ROAD & DRAINAGE EXCAVATION (UNCLASSIFIED) | |
| 209-05 | C.Y. | SEDIMENT REMOVAL | |
| 303-10.01 | TON | MINERAL AGGREGATE (SIZE 57) | |
| 709-05.08 | TON | MACHINED RIP-RAP (CLASS B) | |
| 740-10.03 | S.Y. | GEOTEXTILE (TYPE III)(EROSION CONTROL) | |
| 740-10.04 | S.Y. | GEOTEXTILE (TYPE IV)(STABILIZATION) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 10-26-1992 | 12-18-1995 | 05-27-2001 | 12-18-2002 | 01-22-2003 | 04-15-2006 | 04-01-2008 | 08-01-2012 |
