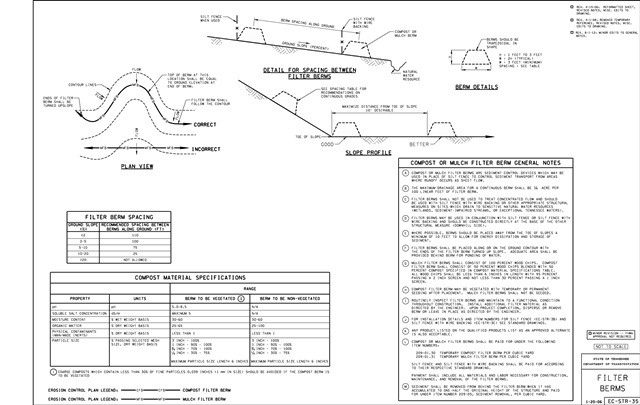

EC-STR-35
FILTER BERMS
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| EC-STR-3B | SILT FENCE | FOR INSTALLATION DETAILS AND ITEM NUMBERS FOR SILT FENCE |
| EC-STR-3C | SILT FENCE WITH WIRE BACKING | FOR INSTALLATION DETAILS AND ITEM NUMBERS FOR SILT FENCE WITH WIRE BACKING |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-01.30 | C.Y. | TEMPORARY COMPOST FILTER BERM | |
| 209-01.31 | C.Y. | TEMPORARY MULCH FILTER BERM | |
| 209-05 | C.Y. | SEDIMENT REMOVAL |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-20-2006 | 04-15-2006 | 04-01-2008 | 08-01-2012 |
