EC-STR-21

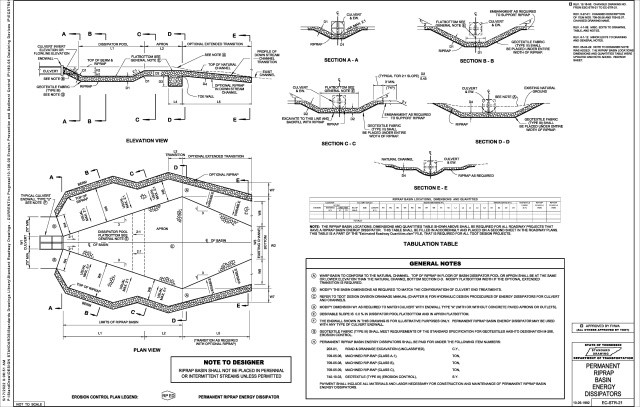

PERMANENT RIPRAP BASIN ENERGY DISSIPATORS
(Click image to open PDF)
Latest Revision Note
05/04/2022 NOTE TO DESIGNER NOTE WAS ADDED. THE RIPRAP BASIN LOCATIONS DIMENSIONS AND QUANTITIES TABLE WERE UPDATED AND NOTE ADDED. REDREW SHEET.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 203-01 | C.Y. | ROAD & DRAINAGE EXCAVATION (UNCLASSIFIED) | |
| 709-05.06 | TON | MACHINED RIP-RAP (CLASS A-1) | |
| 709-05.08 | TON | MACHINED RIP-RAP (CLASS B) | |
| 709-05.09 | TON | MACHINED RIP-RAP (CLASS C) | |
| 740-10.03 | S.Y. | GEOTEXTILE (TYPE III)(EROSION CONTROL) |
