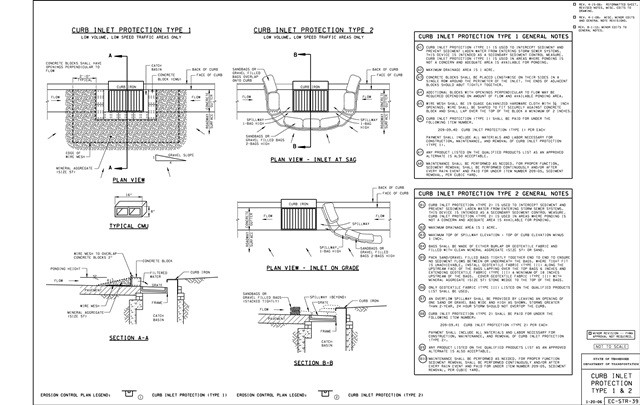

EC-STR-39
CURB INLET PROTECTION TYPE 1 & 2
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-05 | C.Y. | SEDIMENT REMOVAL | |
| 209-09.40 | EACH | CURB INLET PROTECTION (TYPE 1) | |
| 209-09.41 | EACH | CURB INLET PROTECTION (TYPE 2) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-20-2006 | 04-15-2006 | 04-01-2008 | 08-01-2012 |
