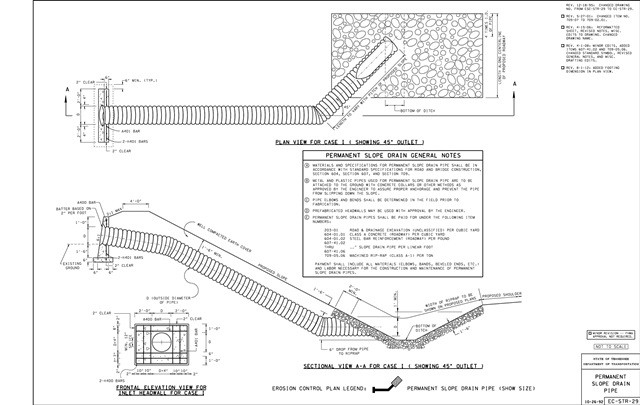

EC-STR-29
PERMANENT SLOPE DRAIN PIPE
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 203-01 | C.Y. | ROAD & DRAINAGE EXCAVATION (UNCLASSIFIED) | |
| 604-01.01 | C.Y. | CLASS A CONCRETE (ROADWAY) | |
| 604-01.02 | LB. | STEEL BAR REINFORCEMENT (ROADWAY) | |
| 607-41.02 | L.F. | 15" SLOPE DRAIN PIPE | |
| 607-41.03 | L.F. | 18" SLOPE DRAIN PIPE | |
| 607-41.04 | L.F. | 24" SLOPE DRAIN PIPE | |
| 607-41.05 | L.F. | 30" SLOPE DRAIN PIPE | |
| 607-41.06 | L.F. | 36" SLOPE DRAIN PIPE | |
| 709-05.06 | TON | MACHINED RIP-RAP (CLASS A-1) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 10-26-1992 | 12-18-1995 | 05-27-2001 | 04-15-2006 | 04-01-2008 | 08-01-2012 |
