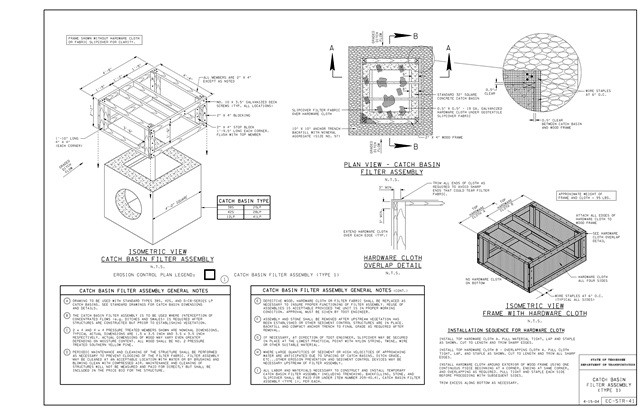

EC-STR-41
CATCH BASIN FILTER ASSEMBLY (TYPE 1)
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-CB-12LP | LOW PROFILE 32" X 32" SQUARE CONCRETE NO. 12LP CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-25LP | STANDARD LOW PROFILE 32" X 32" SQUARE CONCRETE NO. 25LP CATCH BASIN (FOR USE WITH 6" MOUNTABLE CURB) | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-28LP | LOW PROFILE 32" X 32" SQUARE CONCRETE NO. 28LP CATCH BASIN (FOR USE WITH 4" MOUNTABLE CURB) | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-38S | STANDARD 32" X 32" SQUARE CONCRETE NO.38 CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-41LP | LOW PROFILE 32" X 32" SQUARE CONCRETE NO. 41LP CATCH BASIN (FOR USE UNDER CONCRETE MEDIAN BARRIER WALL) | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-42S | STANDARD 32" X 32" SQUARE CONCRETE NO.42 CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-40.41 | EACH | CATCH BASIN FILTER ASSEMBLY(TYPE 1) | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 04-15-2004 |
